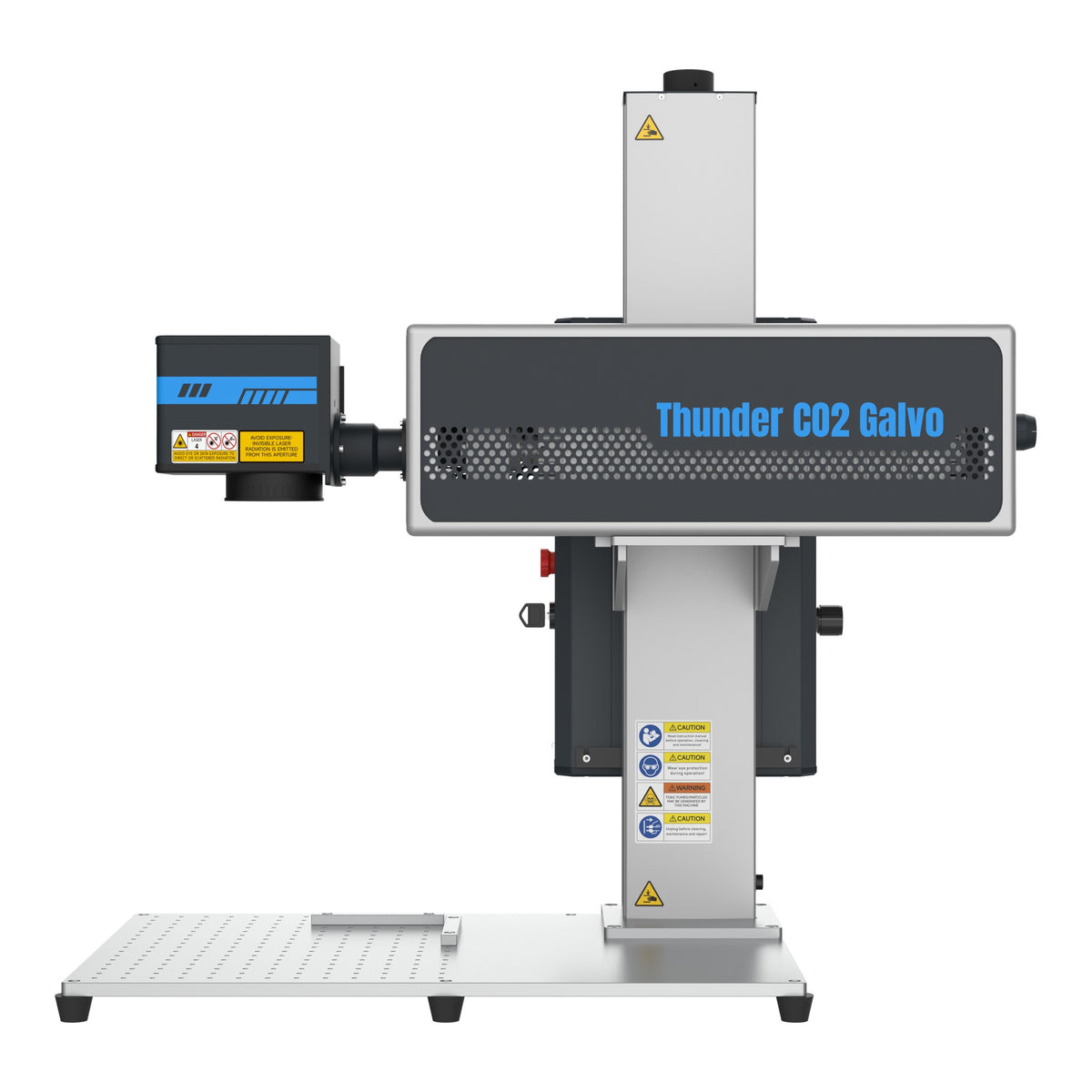

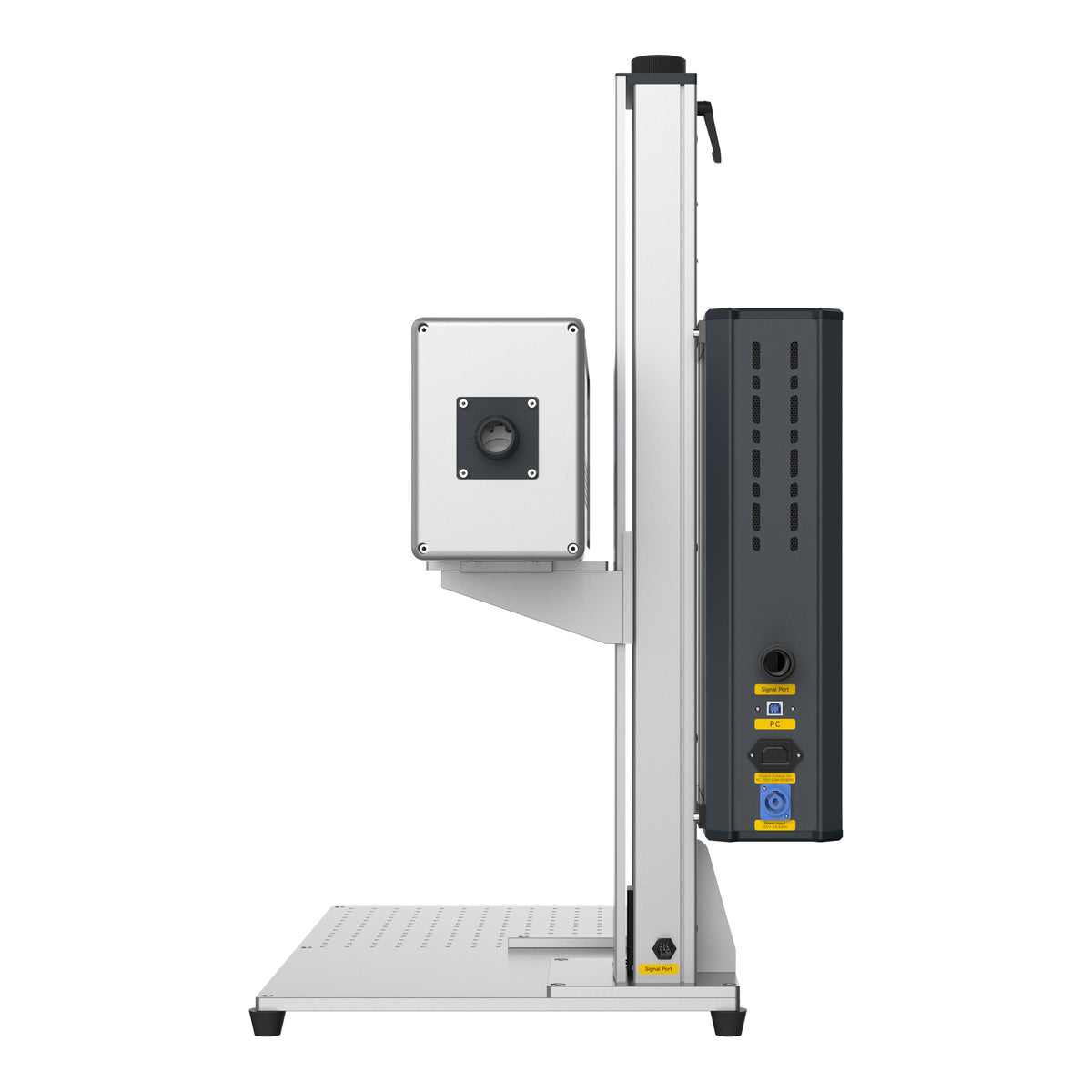

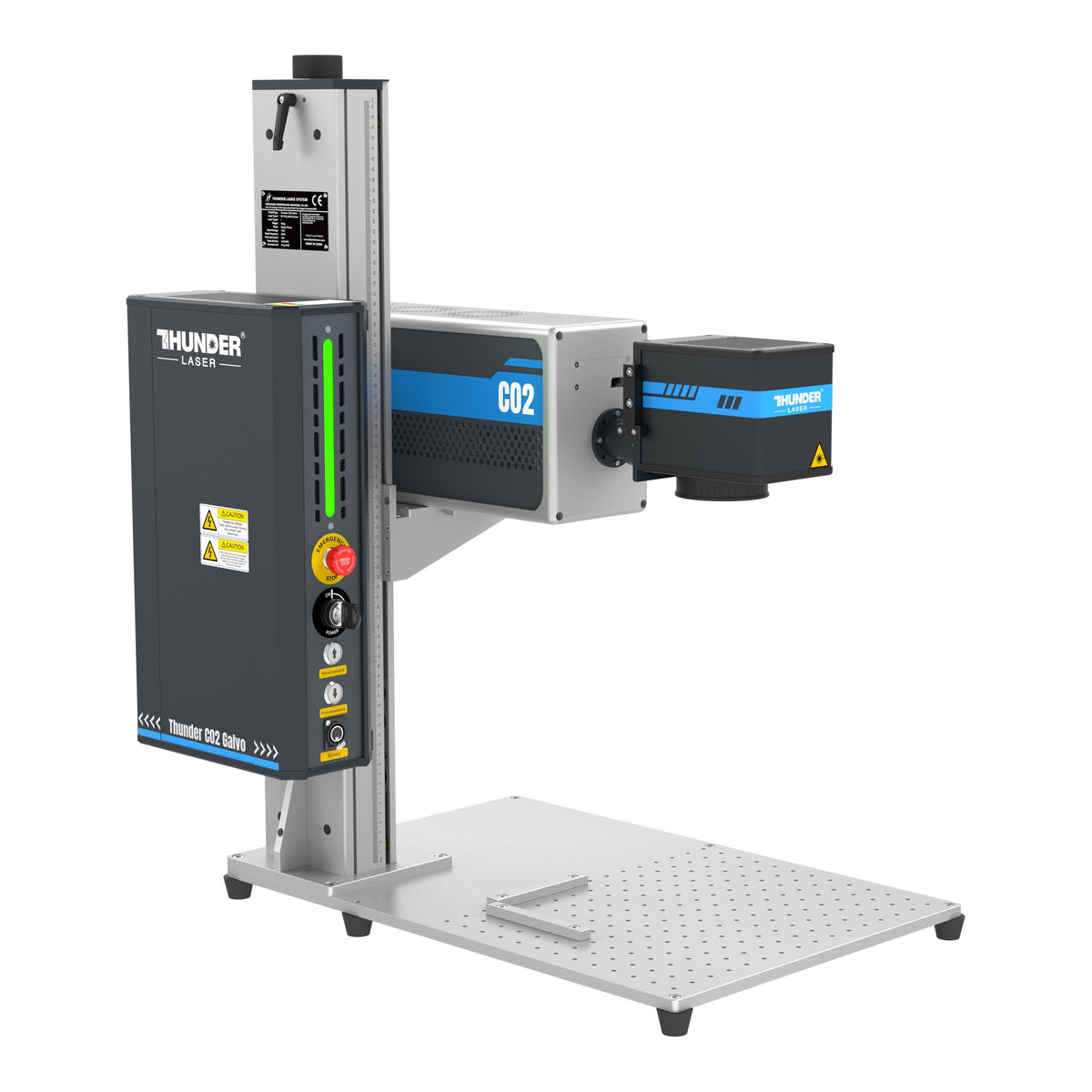

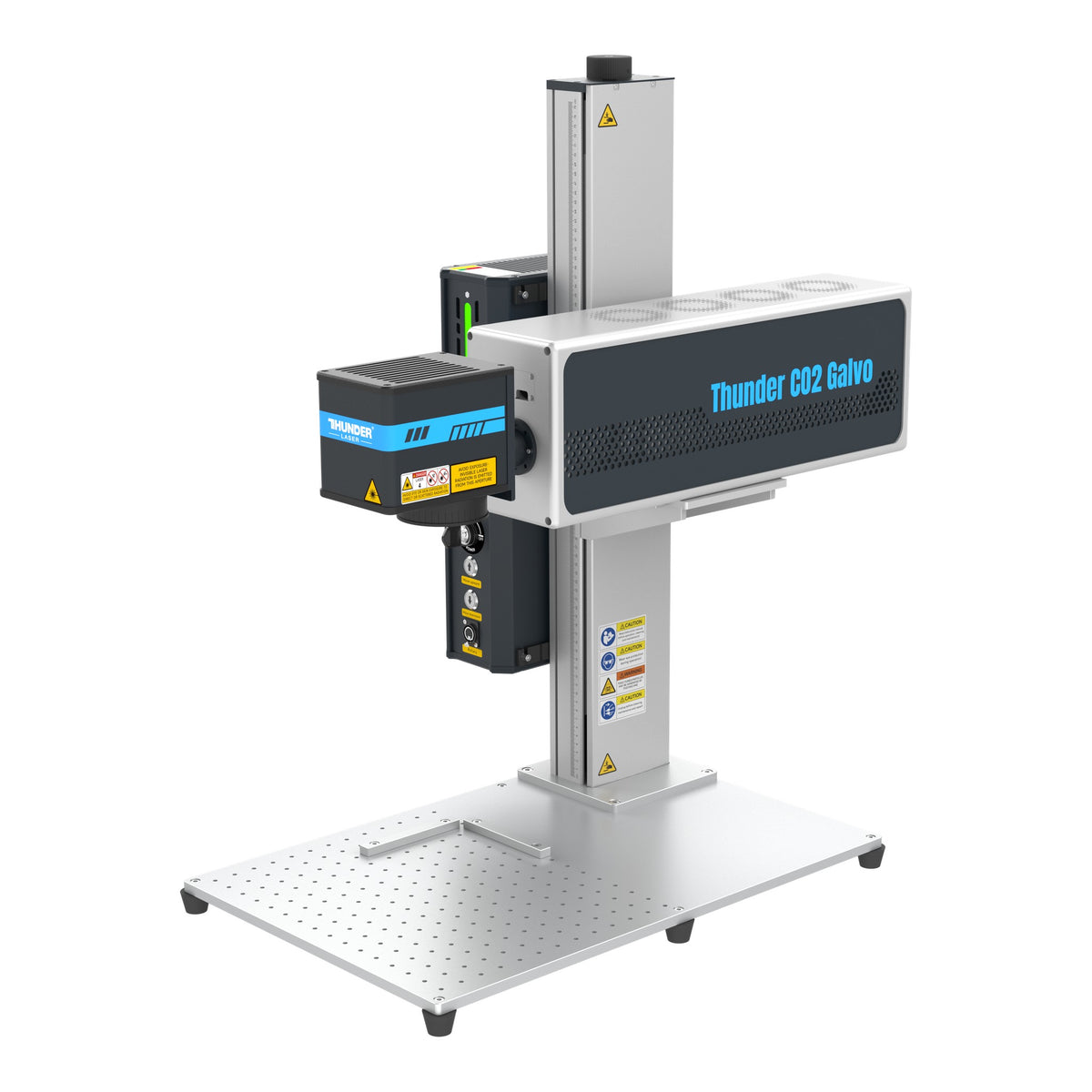

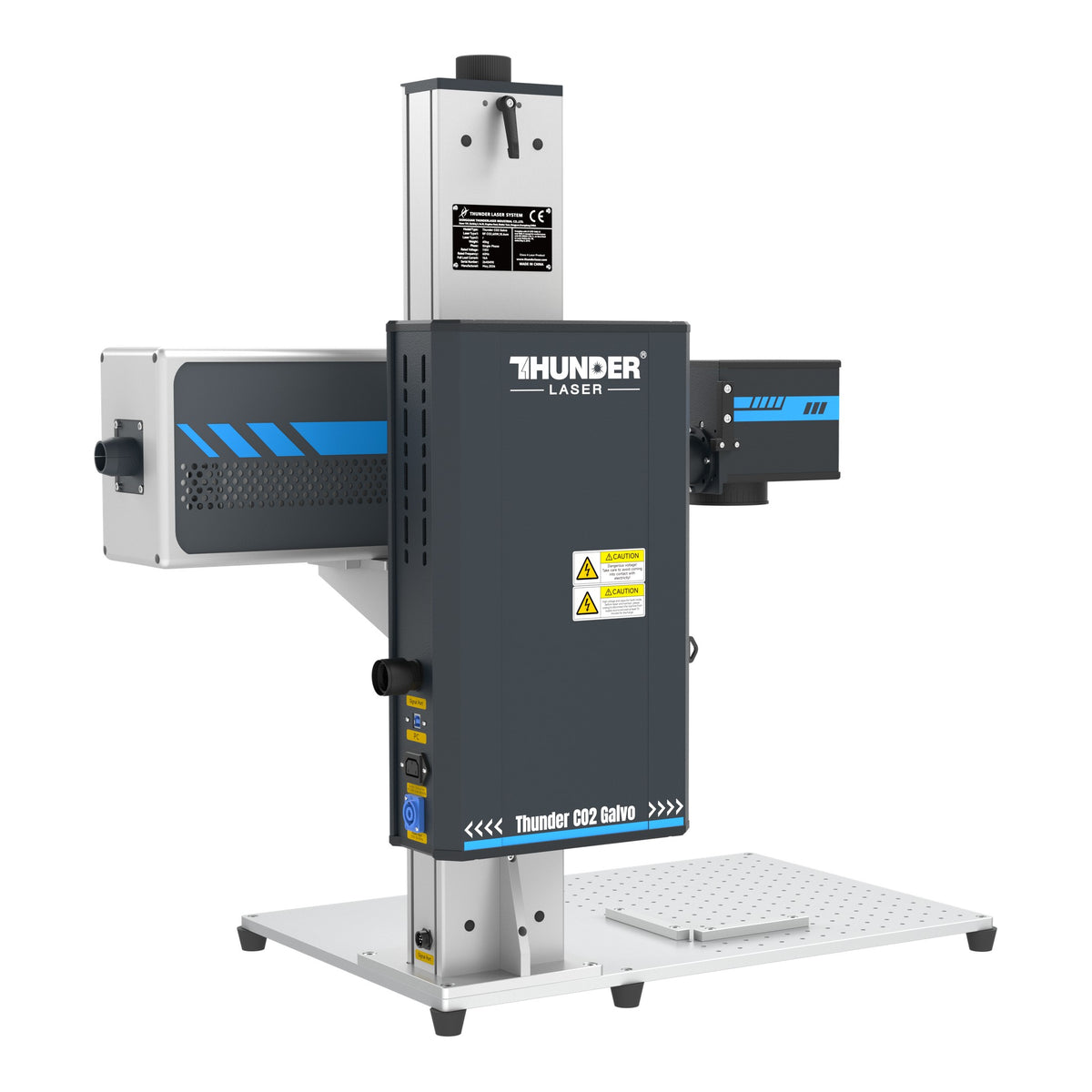

Thunder CO2 Galvo 60W

Meet the Thunder CO2 Galvo, our fastest way to put a mark on something you have already made. A full wrap tumbler that takes roughly 45 minutes on a Titan, Bolt, or Nova Plus comes off the CO2 Galvo in about 10 minutes. Instead of dragging a head across a gantry, galvo mirrors steer the beam at up to 3,000 mm/s.

There is no enclosure and no bed, so nothing limits the size of the part. Set the finished product down, mark it, and pick it up. No jig, no fixture, and no cutting it out first. Built for tumblers, wallets, business cards, pre-cut hat patches, coasters, and cutting boards, at production volume.

Full Wrap Tumblers in About 10 Minutes

Speed and Precision

• 3,000 mm/s max engrave speed, 1,000 mm/s line speed
• 60 W SPT CO2 RF laser source, air cooled
• ±0.002″ repeat positioning accuracy
• 8x beam expander with 20 mm scanning mirrors

Built for Finished Products

• Tumblers and drinkware, full wrap with the rotary
• Leather wallets, journals, and pre-cut hat patches
• Business cards, coasters, cutting boards, and keychains
• Pens, koozies, phone cases, and acrylic awards
• Not designed for cutting. It will get through thin stock, but cutting work belongs on a Nova, Bolt, or Titan

Open Frame, No Size Limit

• Four sided open access, unlimited material size

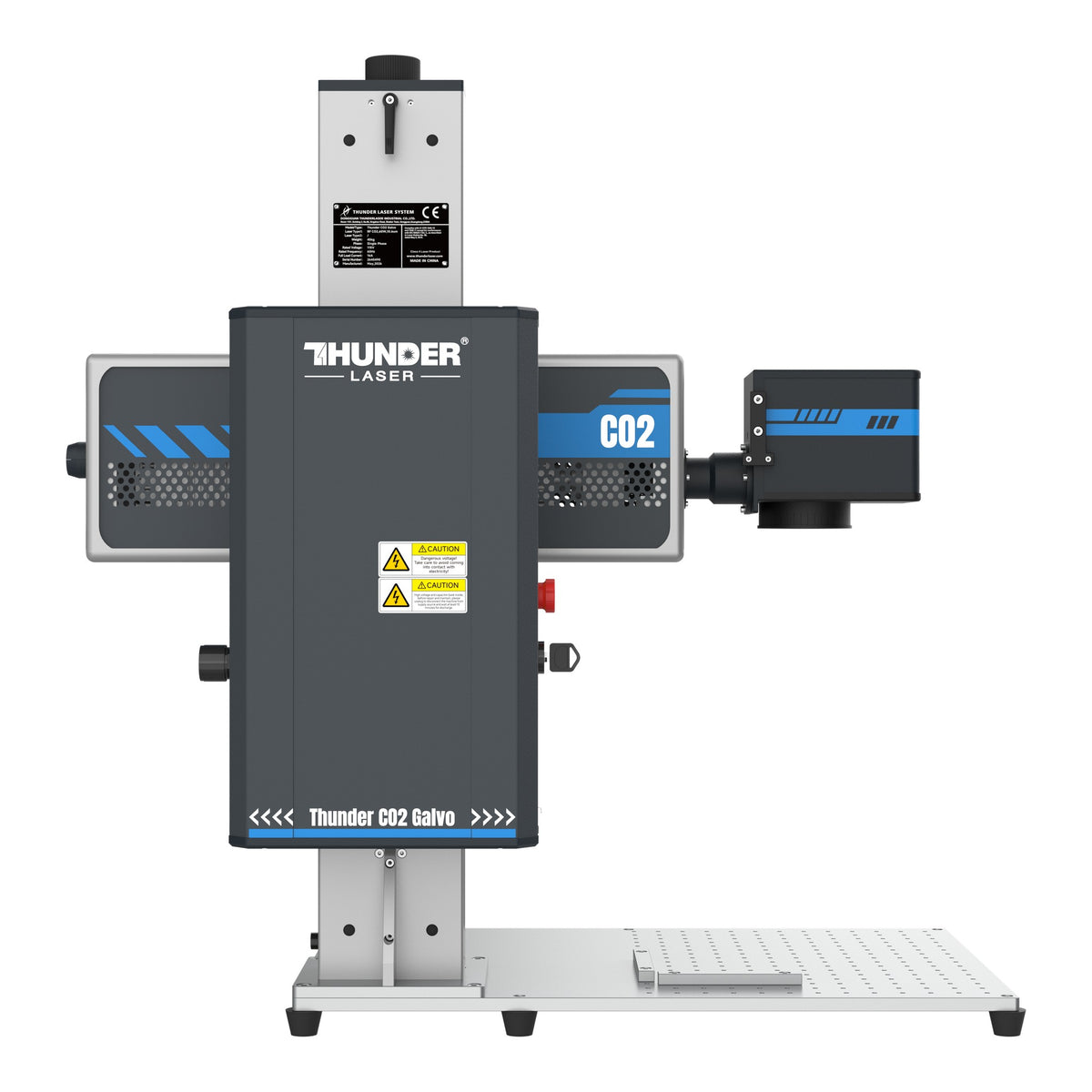

• Motorized Z column with 19.72″ of travel
• 13.19″ max processing height, so tall parts stand up under the head

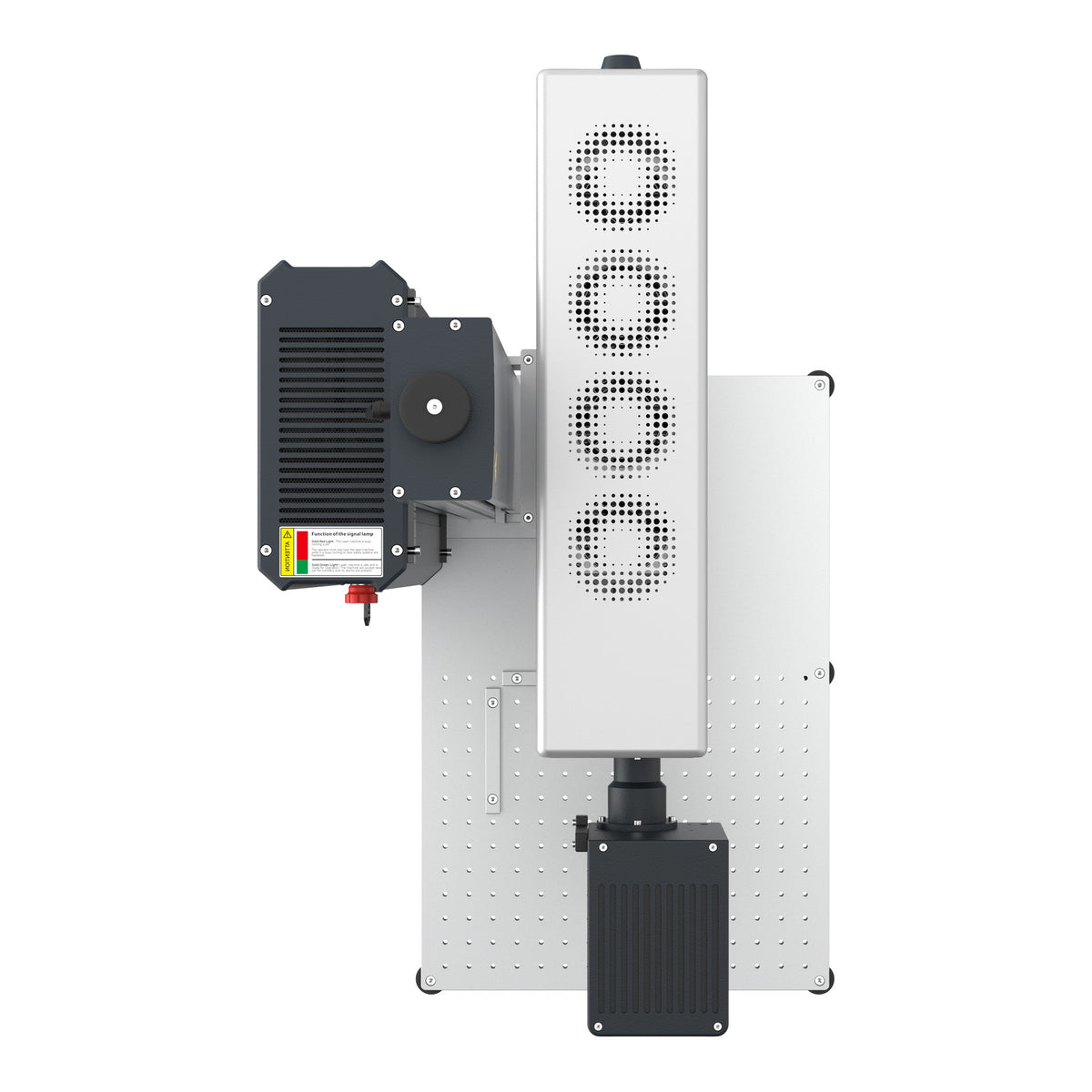

• 25.2″ x 16.73″ fixed hole aluminum table, 55 lb capacity
• Rotary interface built in, rotary sold separately

Easy to Install and Run

• Runs on standard 110 V with a 15 A dedicated breaker
• Air cooled, so there is no chiller to buy, plumb, or maintain
• LightBurn license included, EZCAD2 supported
• 4″ exhaust fan, duct, and bell mouth flange included
• Dual red dot focus pointers standard

Safety and Support

• FDA Class 4 open frame. OD 5+ CO2 goggles included and required
• Key switch locks the machine when you walk away
• Emergency stop cuts all power

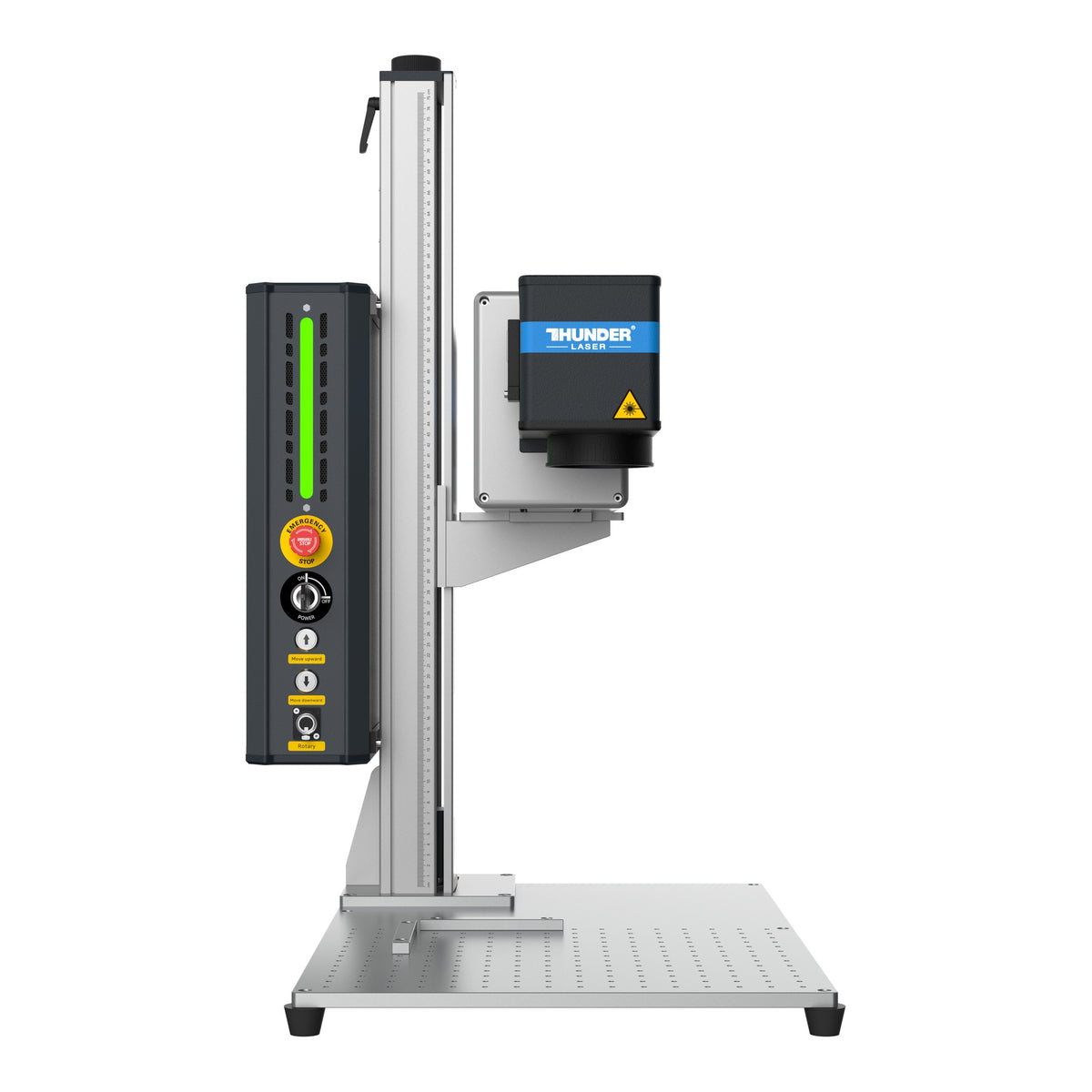

• Status light bar, green for ready and red for running
• Free one on one startup training and 12 month whole machine warranty

Material	Engrave	Cut
Wood		Thin only
Acrylic		Thin only
Leather		Thin only
Fabric		Thin only
Paper and Card		Thin only
Glass		x
Ceramic and Tile		x
Slate and Marble		x
Cork		Thin only
Rubber		Thin only
Delrin		Thin only
Coated Metals		x
Anodized Aluminum		x
Painted Metals		x
Stainless Steel	*	x
Brass	*	x
Titanium	*	x
Bare Metals	*	x

*CO2 lasers will mark bare metals when coated with a metal marking solution. For bare metal on its own, you want a fiber laser, which is our Aurora series.

The CO2 Galvo is an engraver, not a cutter. "Thin only" above means it will get through light stock in a pass or two. If cutting is the job, look at the Nova, Bolt, or Titan.
