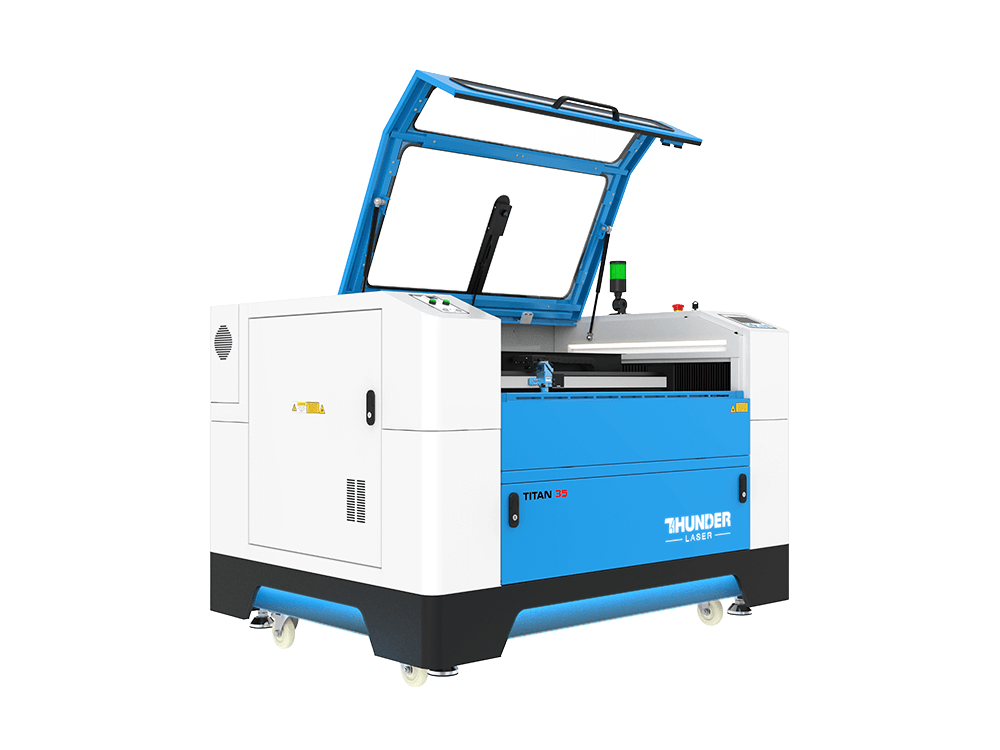

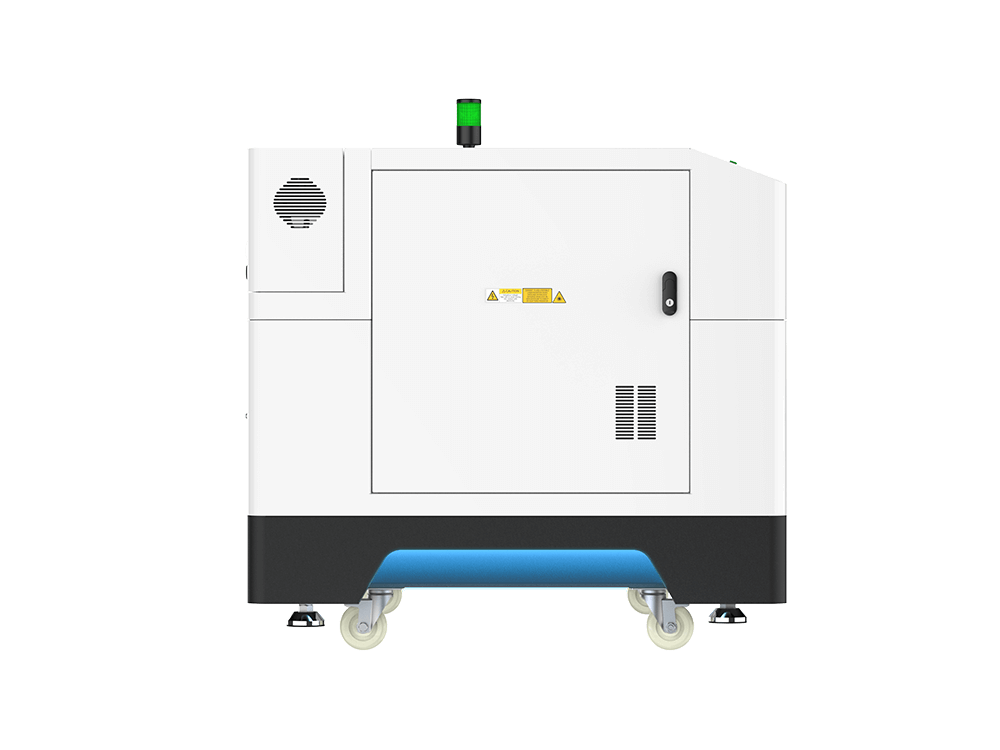

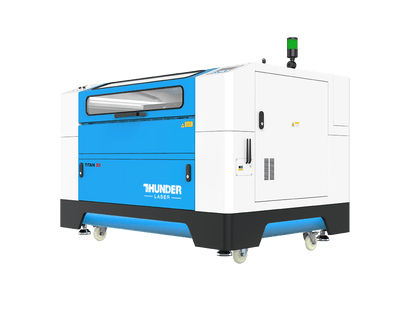

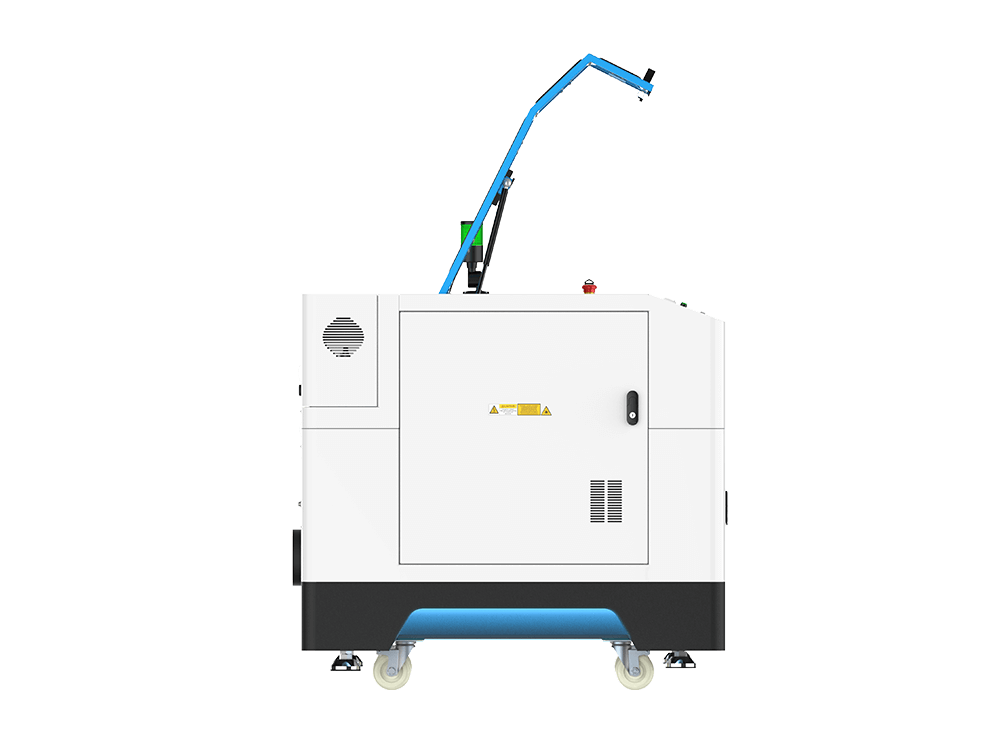

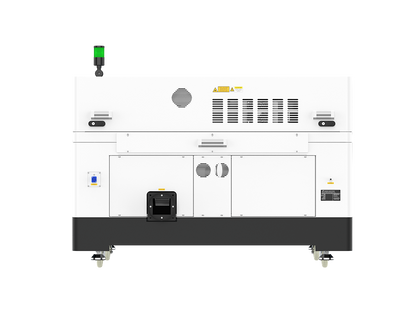

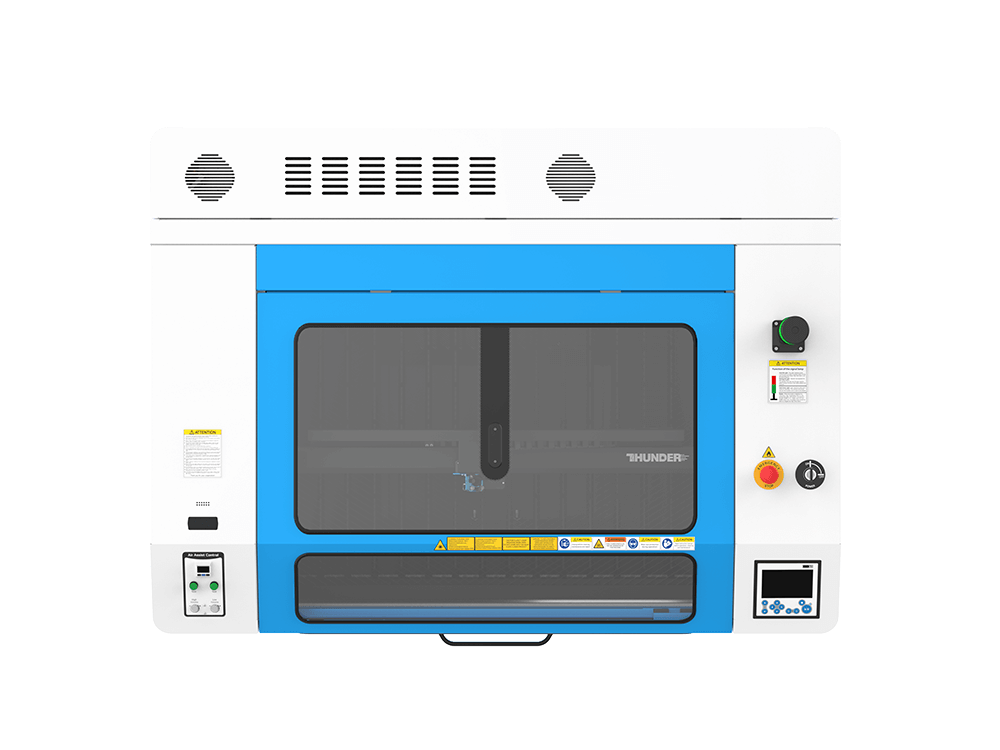

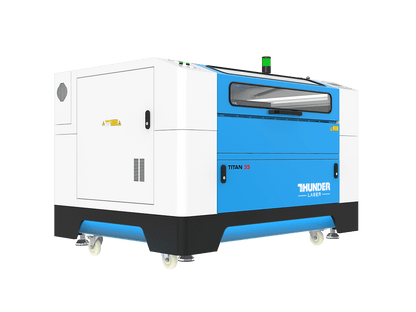

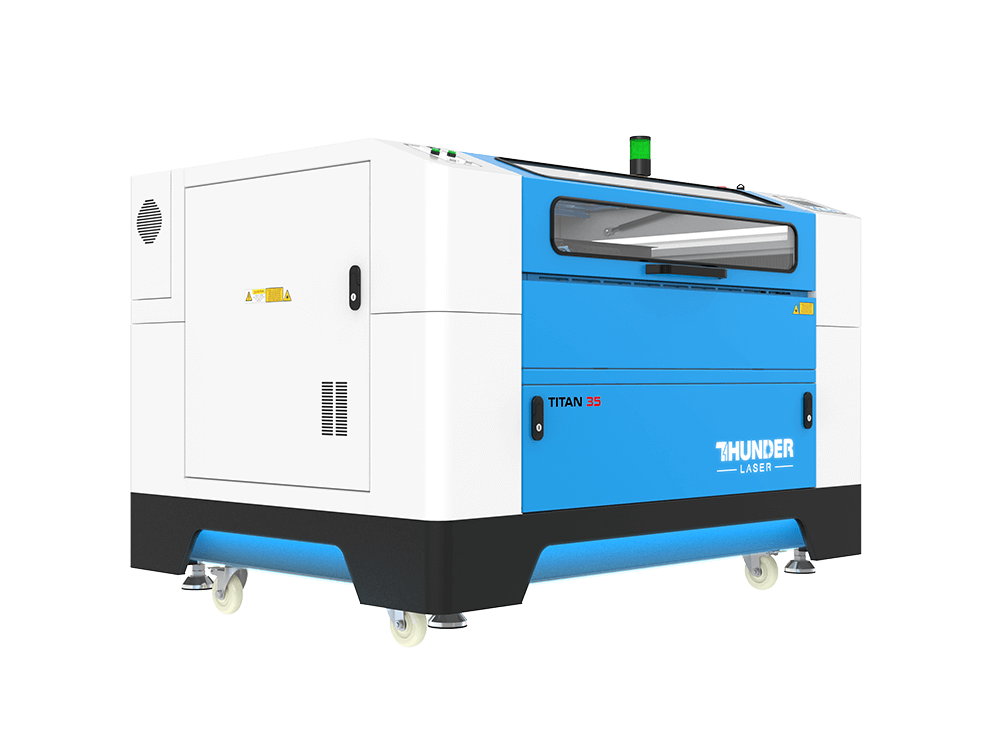

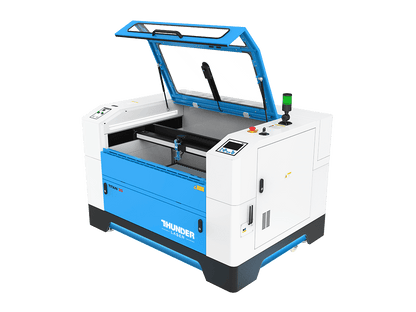

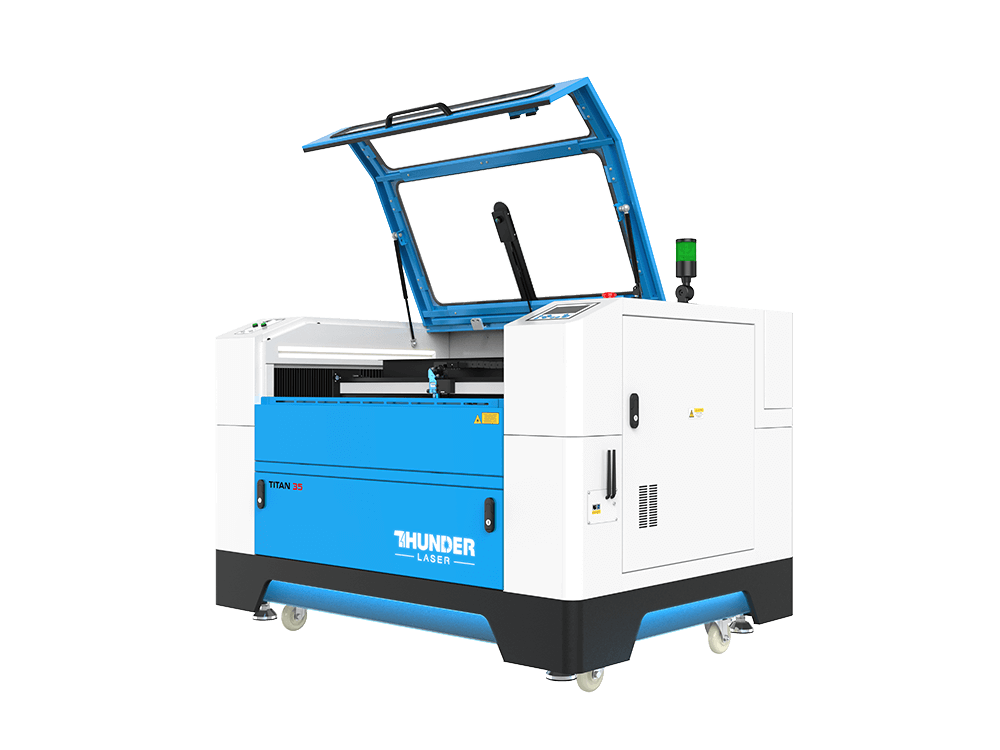

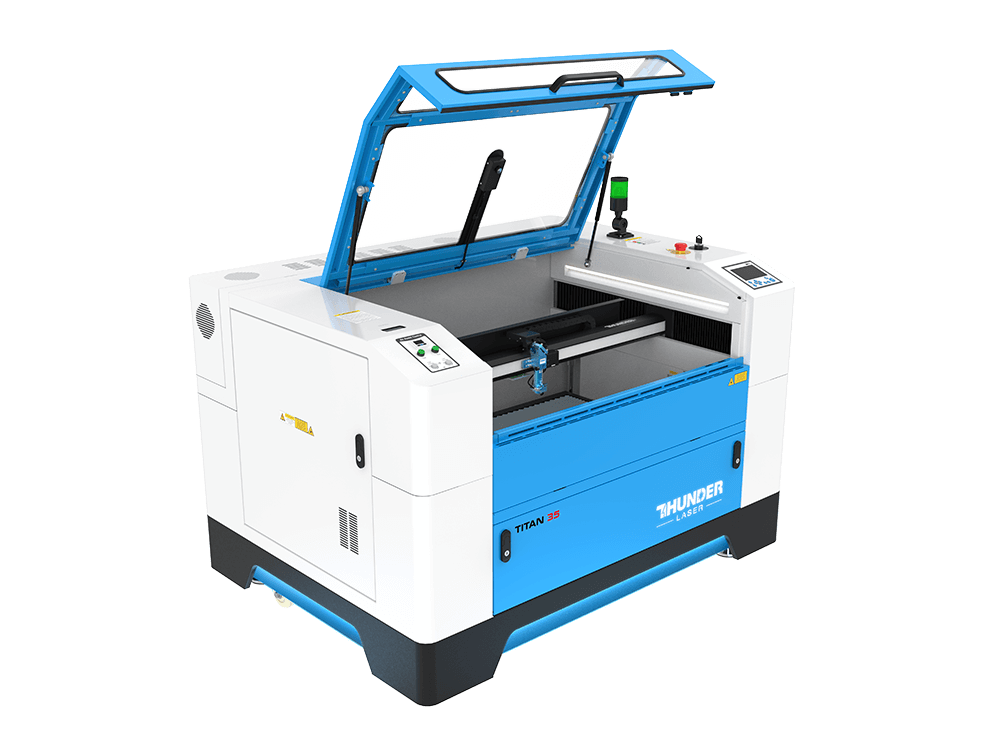

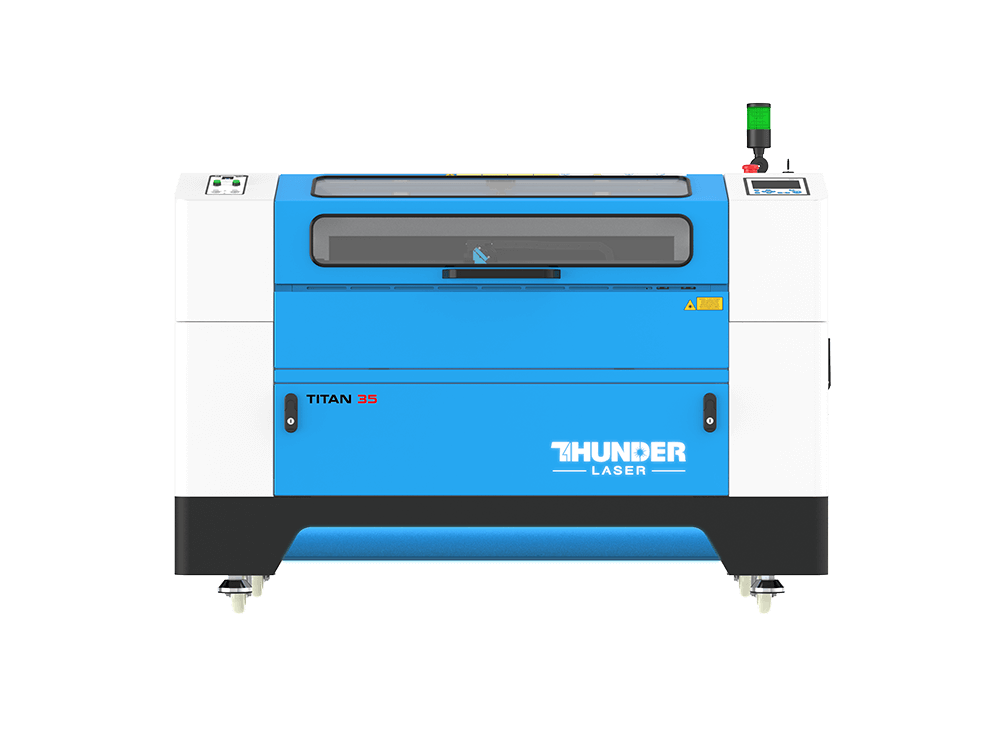

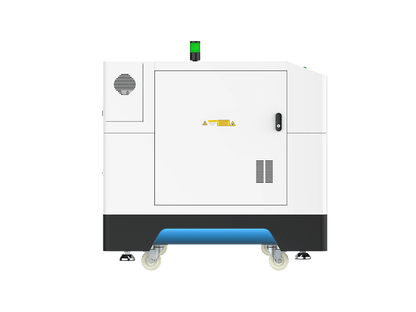

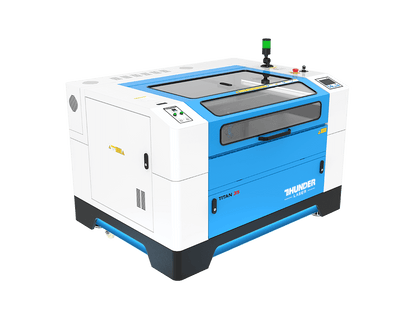

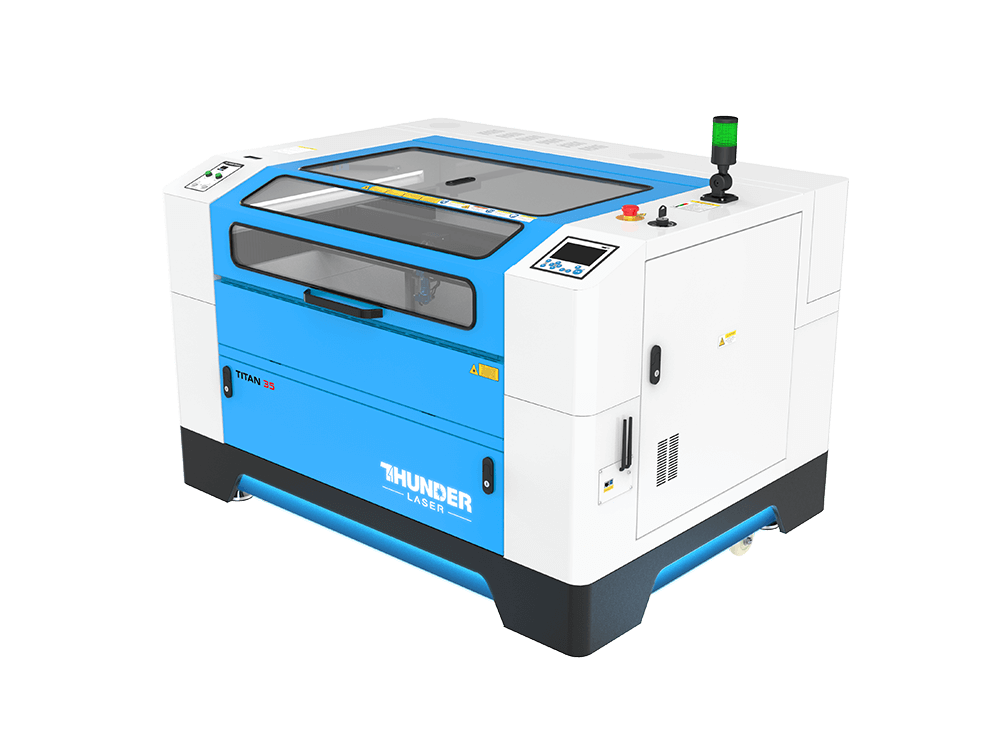

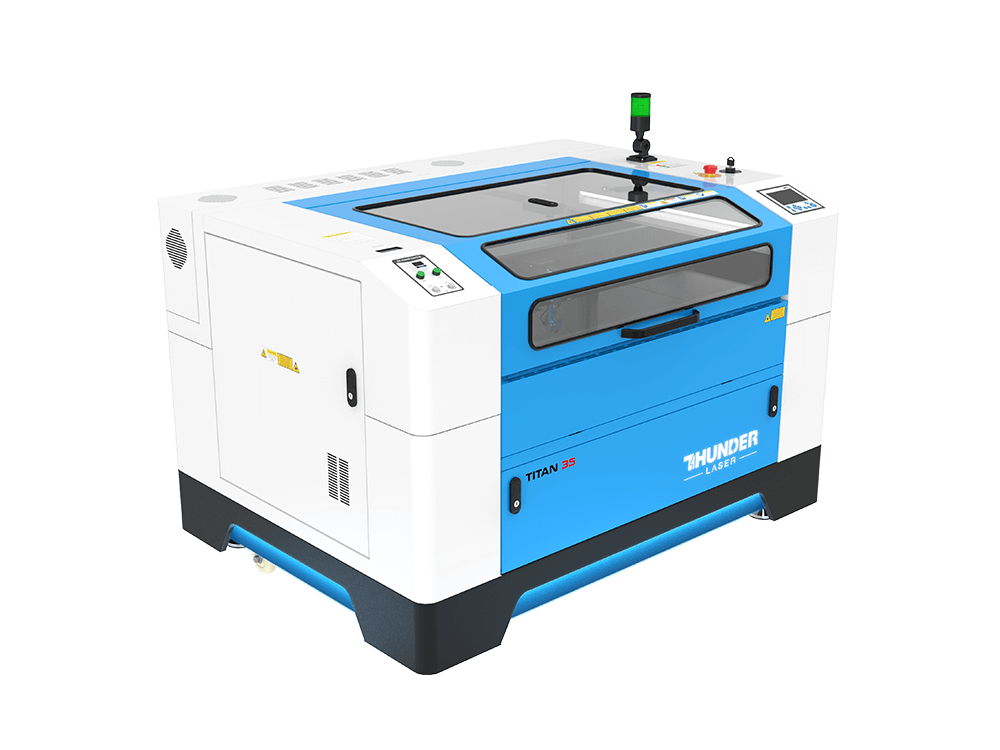

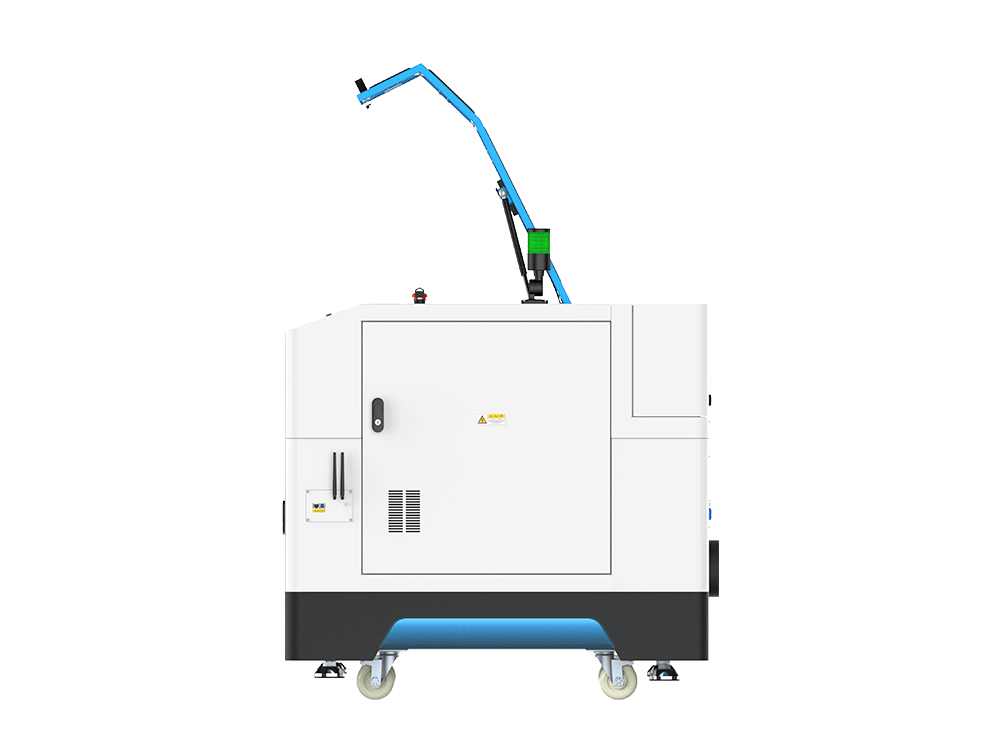

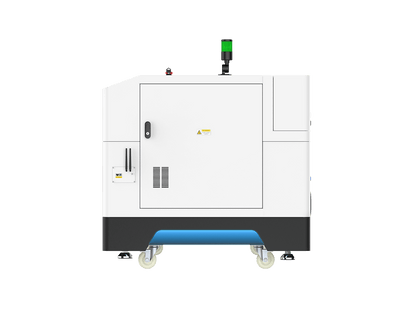

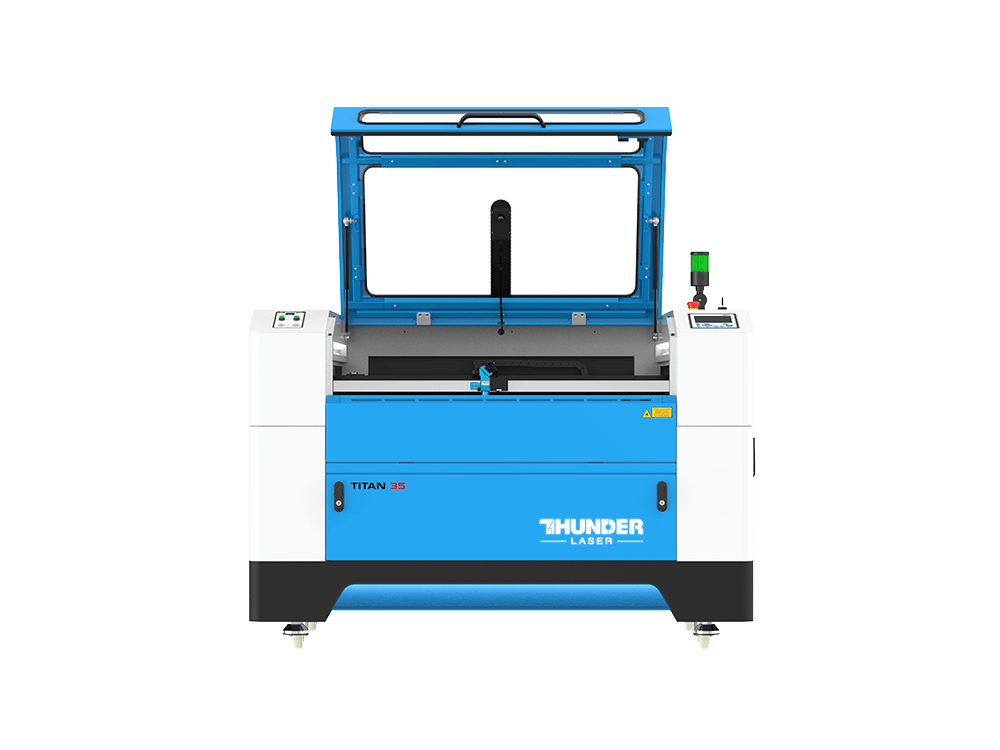

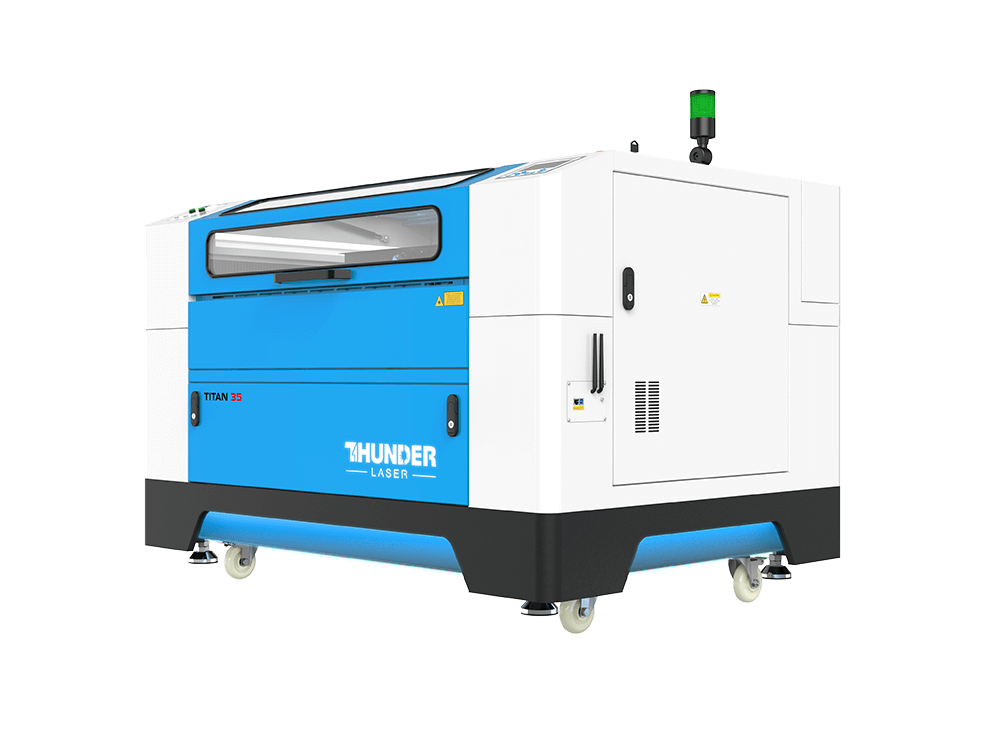

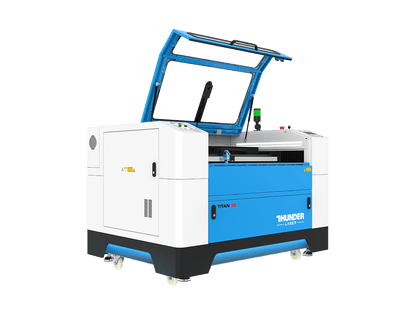

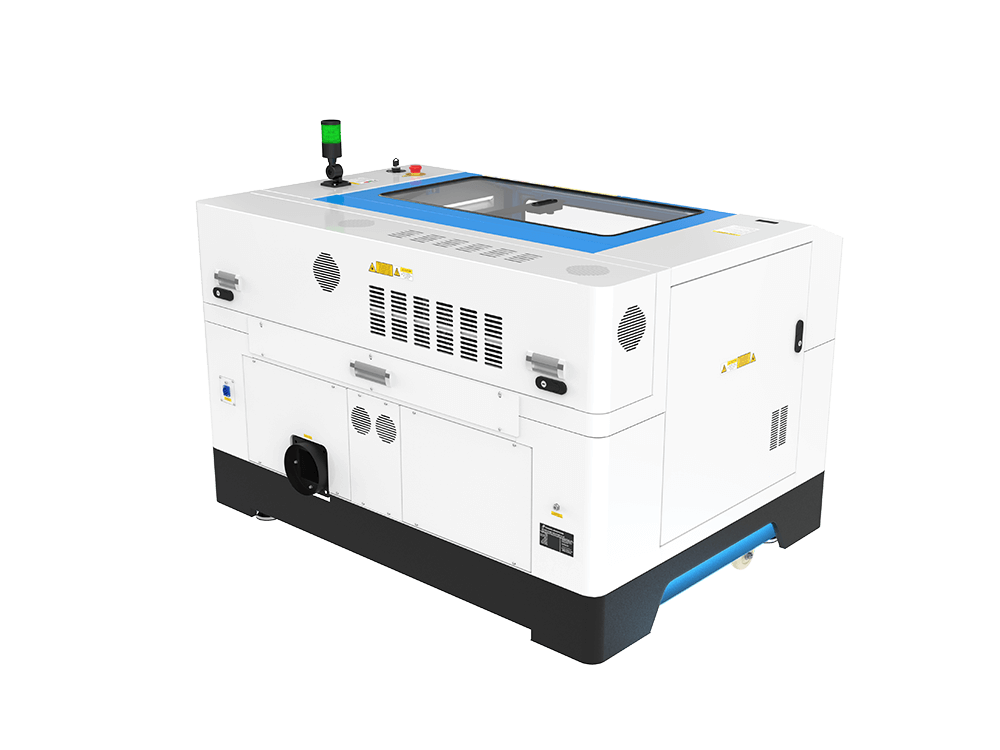

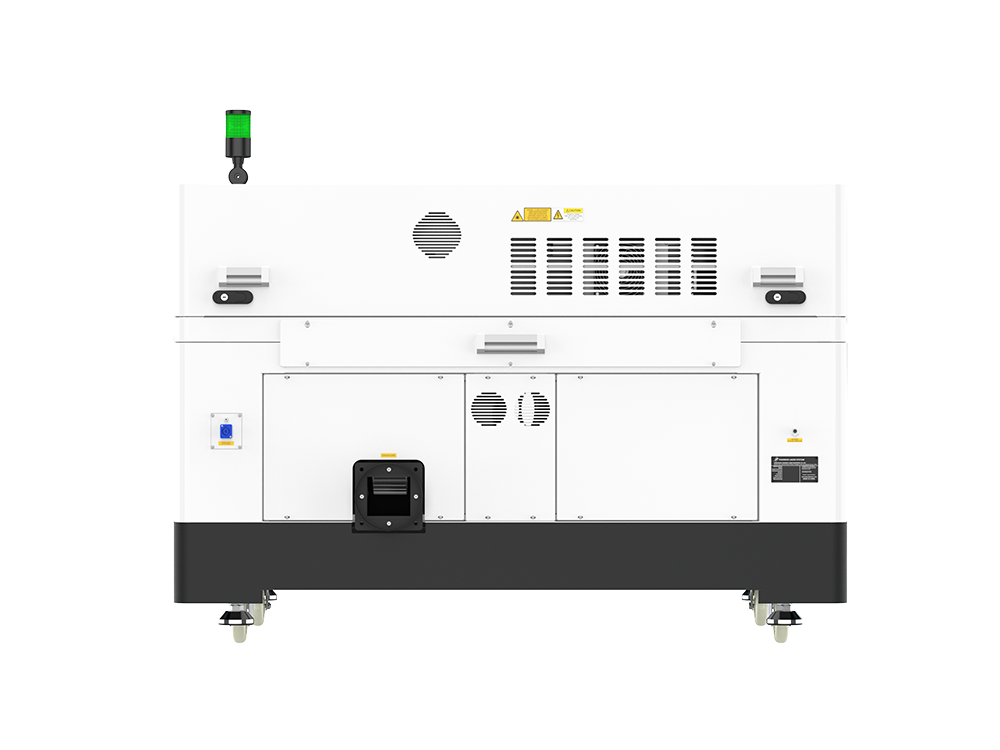

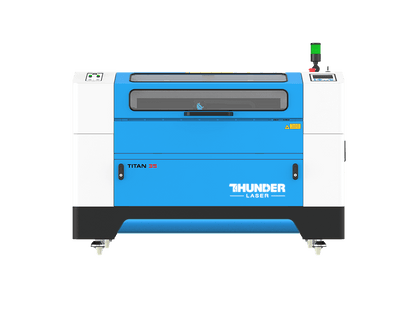

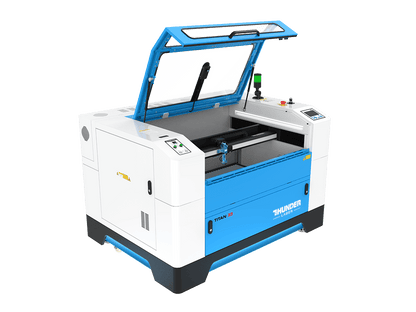

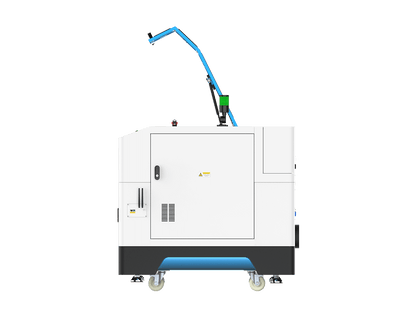

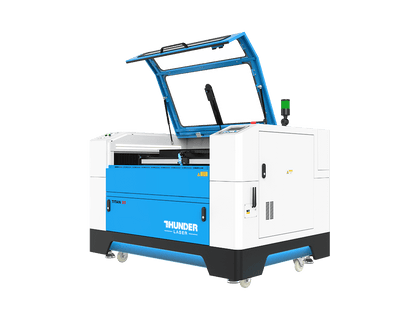

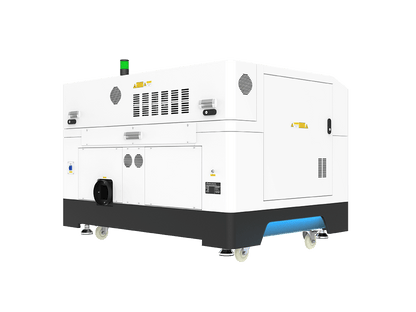

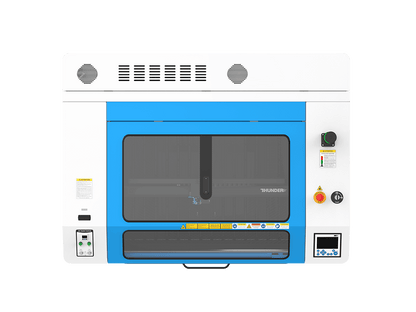

Titan 35
Titan 35
Looking to size up? Look no further. Our Titan series of machine is the upgraded version of our flagship series and they pack a ton of bang for the buck.
Lead times vary by machine model and order volume. If you have specific timing needs, contact us before ordering for confirmation. Please note that if you cancel your order, a 3% cancellation fee will apply to cover processing fees incurred by Thunder Laser USA. For questions or concerns, reach out before completing your purchase. Thank you for your support!
Starting as low as $407.14/mo. Learn More
Couldn't load pickup availability
Speak to an ExpertFast & Secure
-
-
-
-
-
-
-
-
View full details
- Description
- Material Capabilities
- Technical Specs
Built by Thunder. Optimized for Titan.
LaserMaker isn’t just compatible — it’s deeply integrated into the Titan platform, with features designed specifically for high-efficiency engraving, batch coding, and smart alignment. It gives operators powerful tools with a clean interface and automates what used to take extra steps.
Key Advantages of LaserMaker on Titan:
- Auto Device Detection — Automatically recognizes Titan model and laser power, applies correct parameters.
- Mark Point Recognition — Automatically detects registration marks for accurate alignment in print-and-cut applications.
- Material Library Built-In — Tested parameters for different materials reduce trial-and-error time.
- Smart Variable Data Support — Effortlessly generate barcodes, QR codes, serial numbers, and dynamic text from CSV or templates for efficient batch engraving.
- Advanced Output Optimization — Fine-tune images, add lead-in/out lines, and apply kerf offset for cleaner cuts, accurate fits, and professional engraving results.
| Material | Engrave | Cut |
|---|---|---|
| Wood |  |
|
| Cork | |
|
| Acrylic | |
|
| Fabric | |
x |
| Glass | |
x |
| Plastic | |
|
| Mirror | |
x |
| Food | |
x |
| Ceramics | |
x |
| Stone | |
x |
| Leather | |
|
| Rubber | |
|
| MDF | |
|
| Cardboard | |
|
| Anodized Aluminium | x | x |
| Slate | |
x |
| Dimension | 61.02" × 46.06" × 43.70" |
| Working Area | 35.43" × 23.62" |

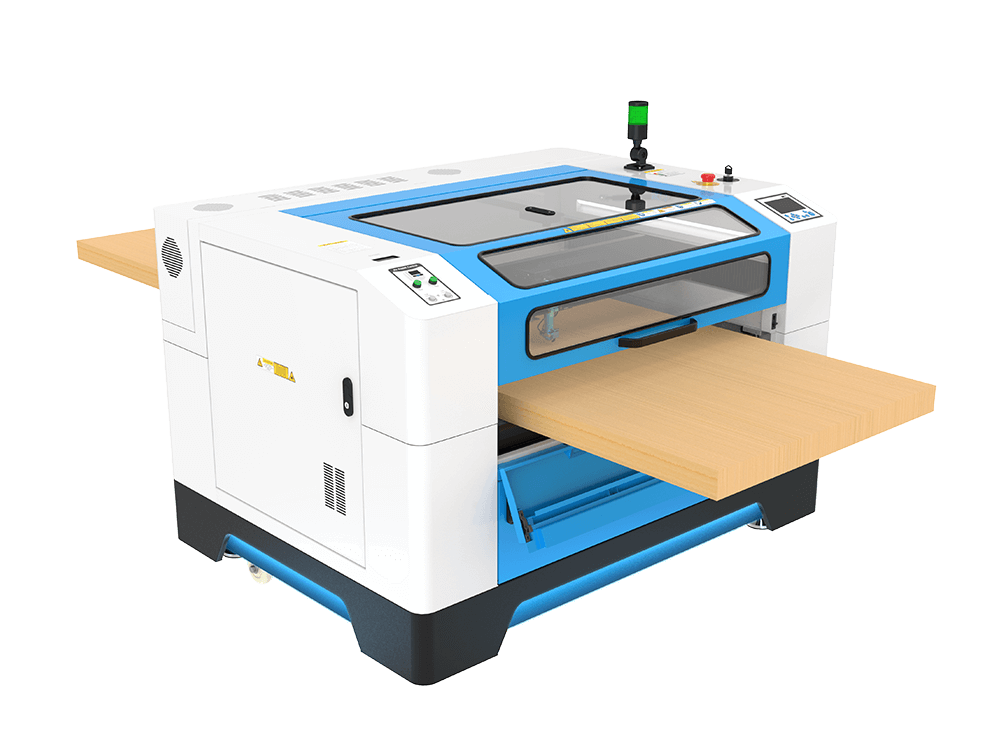

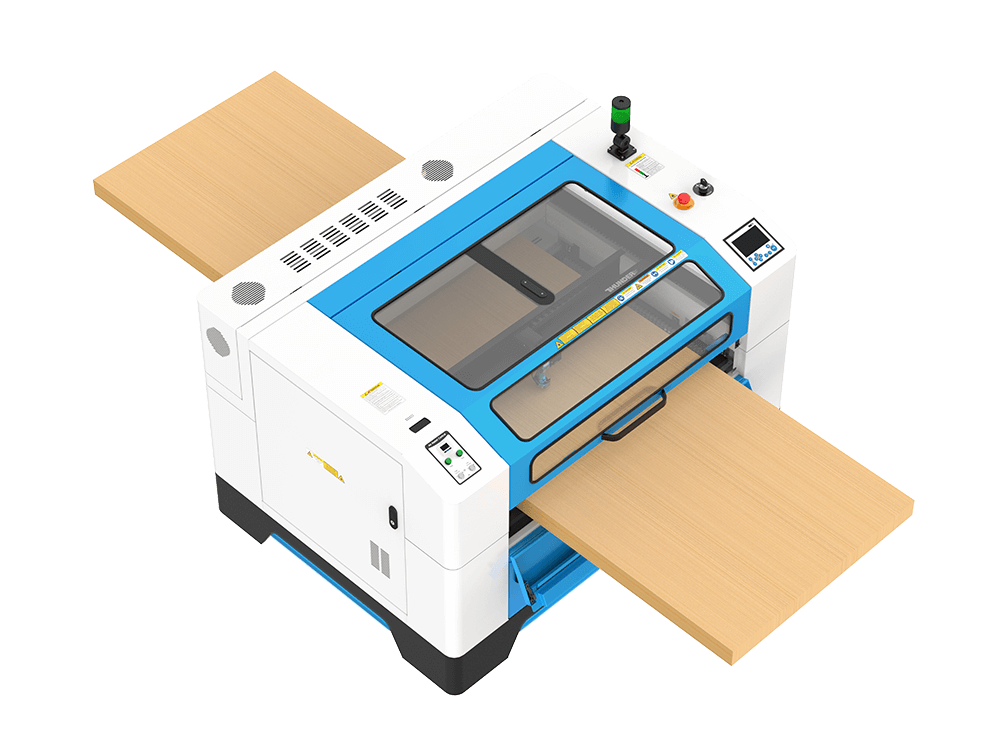

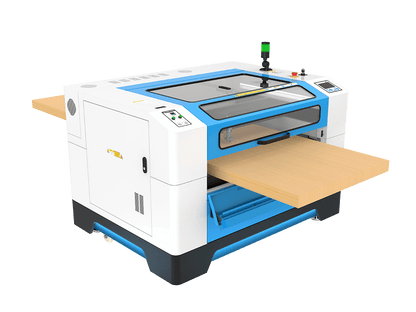

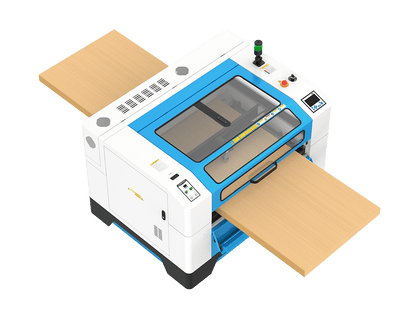

| Pass-through Door | 2.5" |
| Z-depth | 9" |
| Laser Type | 60W, 80W |
| Dual-Laser System | No |
| RF Metal Tube Cooling Method | Air Cooling |
| Max Speed | 3000mm/s Engraving & 300mm/s Cutting |
| Acceleration Speed | 8G (80,000mm/s²) |
| Motion Control System | AC Servo Motor for X/Y Axis |
| Positioning Accuracy | <=0.01mm |
| Top Camera | 1* 5MP Camera (only compatible with Laser Maker Software) |
| Head Camera | 1* 5MP Mark Point Camera (only compatible with Laser Maker Software) |
| Control Panel | 5-inch Capacitive Touch Screen Panel |
| Internal Memory | 1024MB (1GB) |
| Operating System | Windows & Mac OSX |
| Lens | 2.5'' (Standard), 1.5'', 2.0'', 4.0'' (Optional) |
| Safety Level | FDA & CE Certification |
| Warning Indicator Light | Green Light for Standby Mode and Safe Status; Red Light for Processing Mode or a Hazardous Status |
| Fire Alarm Buzzer | Activated When the Work Platform Temperature Exceeds 55°C |
| Lid Material | Transparent Tempered Glass |
| Lid-opening Protection | Yes |
| Side Panel Interlocks | Yes |
| Exhaust System | 6" Integrated Centrifugal Exhaust Fan |
| Dust-proof Design | X/Y Axis Closed Rail Design; Accordion Cover |
| Air Assistance | Inside & Outside Air Assist; Dual-channel Air Blowing |
| Auto Focus | Yes |
| Rotary Accessible | Yes |
| Software | LaserMaker, RDworks, LightBurn |
