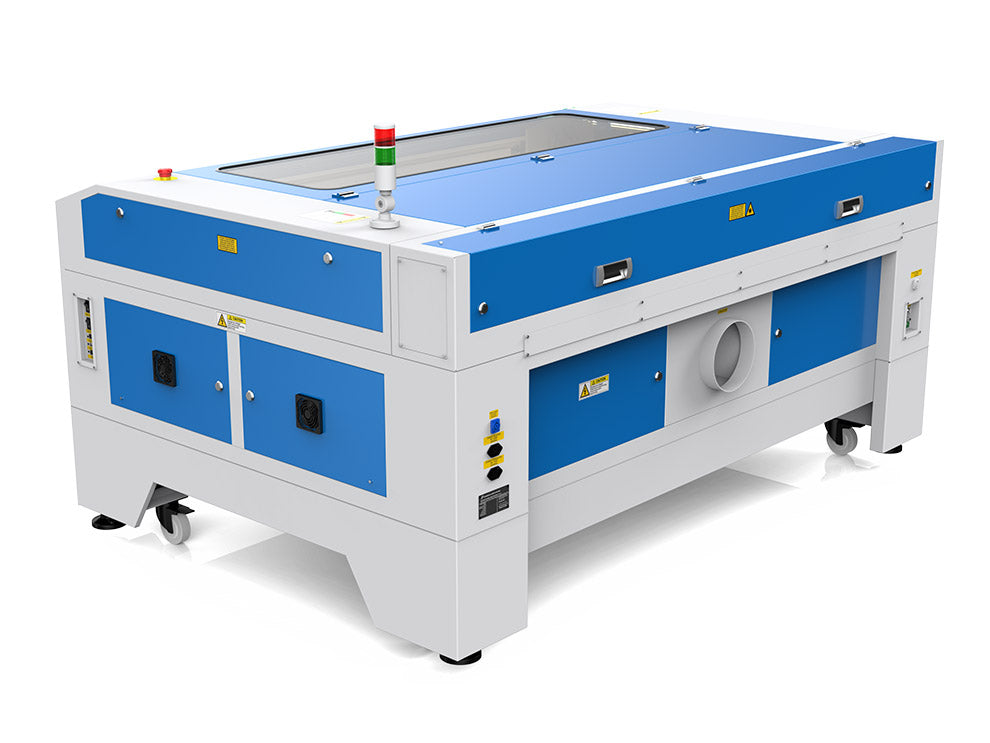

Nova 63
Nova 63
True industrial-grade at these price points is unbelievable. Too good to be true? Not here.
Starting as low as $297.02/mo. Learn More
Couldn't load pickup availability
Speak to an ExpertFast & Secure
-
-
-
-
-
-
-
-
View full details
- Description
- Material Capabilities
- Technical Specs
Looking to size up? Look no further. Our Nova series of machine is our flagship series and they pack a ton bang for the buck. Extra power, more work area, and all the bells and whistles you could ever want. True industrial-grade at these price points is unbelievable. Too good to be true? Not here.
We have four models of Nova and they’re named by how wide the work area is. We have a 24″ wide, a 35″ wide, a 51″ wide, and finally a 63″ wide.
With the Nova, all you have to decide is which size and wattage to get.
The #1 Production Laser
Speed and Precision
- High-speed hybrid servo motors, up to 1000mm/s
- Up to 3x faster than standard stepper motors
- Higher wattage for cutting thick materials
- Up to 1,000 DPI
Extra Features
- Dual-stage air assist: Different air pressures for engraving vs cutting
- Auto-focus, Red Dot Pointer, and Status Indicator Light
- Built in crumb tray to catch the scraps
- Smart board turns air and exhaust on/off with each job
Durability
- Durable gantry ensures high-quality engravings
- Industrial-grade chiller included
- Heat Alarm + other safety features
All-enclosed Design
- Up to 63" wide work area
- Motorized Z-Table fits up to 9" tall parts
- Great for production runs
| Material | Engrave | Cut |
|---|---|---|
| Wood |  |
|
| Acrylic | |
|
| Fabric | |
|
| Glass | |
x |
| Coated Metals | |
x |
| Ceramic | |
x |
| Delrin | |
|
| Cloth | |
|
| Leather | |
|
| Marble | |
x |
| Matte Board | |
|
| Melamine | |
|
| Mother of Pearl | |
|
| Paper | |
|
| Mylar | |
|
| Pressboard | |
|
| Rubber | |
|
| Wood Veneer | |
|
| Fiberglass | |
|
| Painted Metals | |
x |
| Tile | |
x |
| Plastic | |
|
| Cork | |
|
| Corian | |
|
| Anodized Aluminum | |
|
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metals | * |
*CO2 lasers will mark bare metals when coated with a metal marking solution.
| Engraving / Working Area | 63.0″ x 39.4″ x 9.1″ |
| Max Part Size |
Pass through closed: 66.9″ x 44.5″ x 9.1″ Pass through open: 66.9″ x ∞” x .8″ |
| Laser Wattage | 100w or 130w |
| Intelligent Memory Capacity | Multiple File Storage up to 1GB |
| Laser Source | Sealed CO2 Glass Tube, stringently tested to pass Quality Control. Average lifespan is 2000-4000 working hours. |
| Electrical Requirements | Standard 110v AC 60Hz Single Phase, dedicated 20A circuit |
| Air Assist | Air pump 5-7psi included |
| Machine Size | 86.6″ x 59.3″ x 40.9″ |
| Software | LightBurn Software included for two computers, easily import any graphics file. Compatible with Windows, Mac, and Linux |
| Training | One hour remote setup training included, optional four hour training available |
| Red Dot Pointer | Shows where laser will fire, allows for “dry run”, allows for easy positioning on material |
| Camera System | Optional ThunderCam allows you to see materials on the laser bed via the software for easy positioning of engravings on strange-shaped objects. |
| Operating Modes | Optimized raster, vector, or combined modes |
| Easy Adjustable Home | When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with a new origin |
| Motion Control System | LeadShine Hybrid-Servo Motors with engraving speeds up to 1,000mm/s (39″/second) |
| Resolution | Up to 500dpi with included 2″ head or 1,000dpi with HR head |
| Safety | Open cover protection, no-water protection, heat alarm system |
| Auto Focus | Infrared Auto-Focus system to easily bring material into focus |
| Belts | High-quality fiberglass reinforced neoprene belts |
| Water Chiller | CW5000 (100w version) or CW5200 (130w version) |
| Ventilation | 735CFM Exhaust Fan. There is one 8″ port on the rear of the machine |
| Motorized Table | Includes both a removable honeycomb and solid metal blade (knife-style) bed |
| Laser Heads | 2″ Head / Lens included, optional 4″ head and HR head |
| TL-Timer (Smart Board) | Relay switch that controls exhaust and air assist so they stop running when laser is not working |
| Warning Light | Visible red / green light on machine so you know when job is finished |
| Support | Free USA-based lifetime support with the fastest response times in the industry |
